Compress 7400i AW overview
Suitable for renovation (building dependent) and new build projects, our 74001iAW air to water heat pump utilise high efficiency, low-carbon technology to deliver all the benefits of using ambient air as the primary energy source for space heating and hot water.
Our quietest outdoor unit with ultra low-noise operation enhanced by an addition diffuser. Its monobloc design houses all refrigeration circuit components, including the inverter, filter and circuit boards, keeping maintenance low.

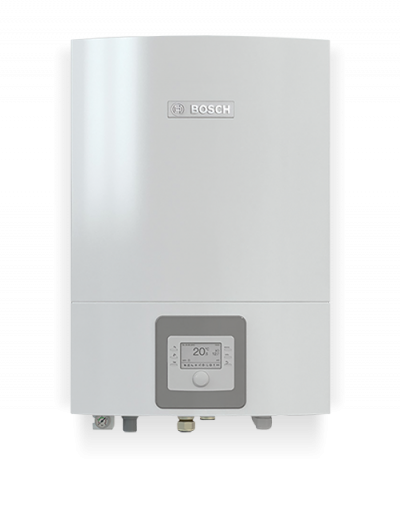

Pre-configured AWE indoor unit for quick and easy installation with a built in multi- functional back up electric booster for heating and hot water.
Optional external HR200 and HR300 cylinders provide solutions for even the most demanding lifestyles.
ErP Labels
ErP Data Sheets
Click here to generate individual ErP product and system labels for this and other products in our range - including Hybrid solutions!
Features & Benefits
|
7400iAW outputs of 5kW and 7kW
|
A+++ at 35 degrees flow for heating
|
Heating mode from -20°C to 35°C (outside temperature)
|
|||
|
Cooling mode from 15°C to 45°C (outside temperature)
|
Low maintenance with hermetically sealed refrigeration circuit
|
No requirement for Glycol to be used
|
|||
|
Electronic expansion valves for better refrigerant and better COP
|

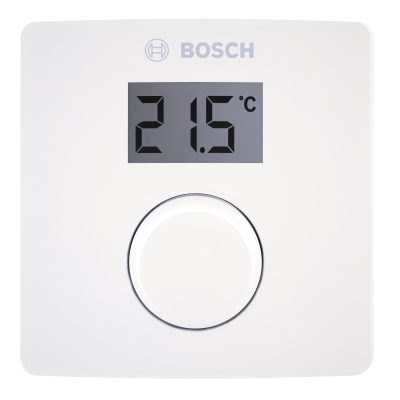

A CR10H remote room controller is available for additional user convenience and comfort
|
Optional 50 litre buffer vessel available if required
|
|||
Technical details
CS7400i AW-5kW
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 5.48
- Coefficient of Performance (COP) at +7 / W35
- 5.01
- Sound pressure level at a distance of 1 m dB(A)
- 42
- Sound Power Level Outdoors (dBA)
- 50
CS7400i AW-7kW
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 7.29
- Coefficient of Performance (COP) at +7 / W35
- 5.01
- Sound pressure level at a distance of 1 m dB(A)
- 42
- Sound Power Level Outdoors (dBA)
- 50
